Stone Chapel Organ

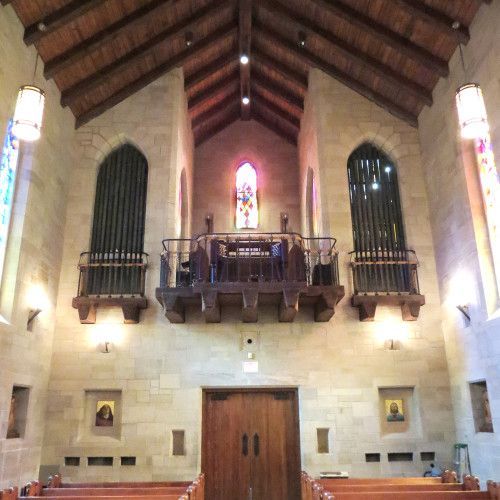

The chapel organ was built in 1935 by Casavant Frères of Sainte-Hyacinthe, Québec. The instrument is the firm's opus 1506, and consists of 29 ranks of pipes. The main organ and console are in the rear gallery, and there is a small echo organ above and to the left of the crucifix. The original specifcation can be found here. Several tonal changes have been made since the instrument's original installation.

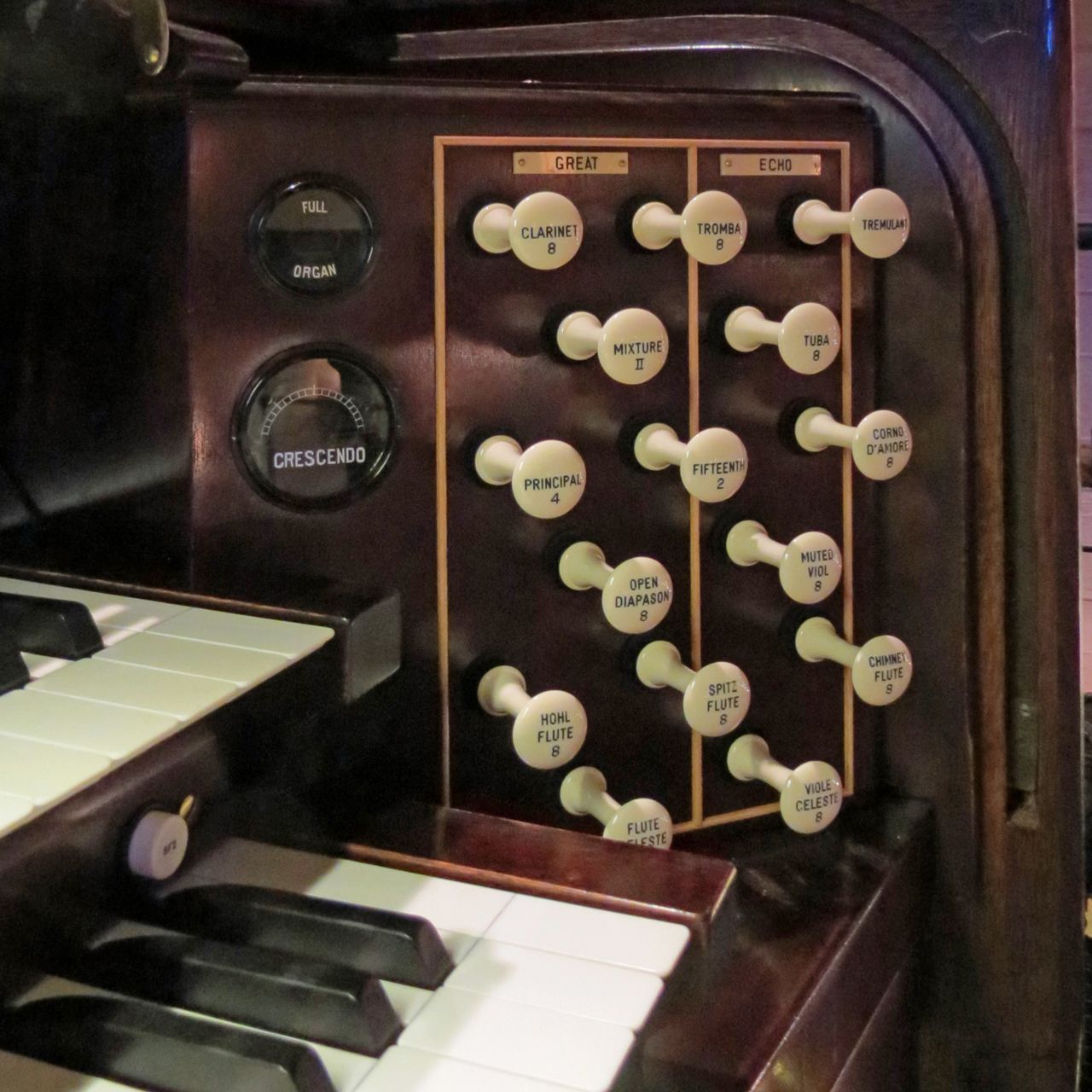

In 2014, Patrick J. Murphy and Associates of Stowe, Pennsylvania (www.pjmorgans.com) rebuilt the instrument. The mechanism was renewed and the console was updated with the latest solid state technology. Existing pipework was thoroughly cleaned and voiced for optimal speech. Several vintage pipe ranks were added to allow the instrument to be more successful in leading congregational singing, accompanying, and rendering the organ literature.
Casavant Frères, Op. 1506/Patrick J. Murphy and Associates, Op. 61
Specifications
Great Division
(Enclosed, 9 stops, 10 ranks, 591 pipes)
1. 8 Open Diapason 61 pipes
2. 8 Hohlflute 49 pipes (Pedal 1-12)
3. 8 Spitz Flute 61 pipes
4. 8 Flute Celeste gg 54 pipes
5. 4 Principal 61 pipes
6. 2 Fifteenth 61 pipes
7. II Mixture 122 pipes
8. 8 Tromba 61 pipes
9. 8 Clarinet 61 pipes
Chimes Rocking tablet- From Echo
Tremulant Rocking tablet
Swell Division
(Enclosed, 9 stops – 11 ranks –713 pipes)
10. 16 Gedeckt 68 pipes
11. 8 Open Diapason 68 pipes
12. 8 Stopped Diapason 68 pipes
13. 8 Viola da Gamba 68 pipes
14. 8 Voix Celeste gg 54 pipes
15. 4 Principal 68 pipes
16. 4 Traverse Flute 68 pipes
17. III Dolce Cornet 183 pipes
18. 8 Oboe 68 pipes
Tremulant
8 Tromba (Great) Not affected by Unison off
8 Tuba (Echo) Not affected by Unison off
Echo Division
(Enclosed, 5 stops, 5 ranks, 305 pipes)
19. 8 Chimney Flute 61 pipes
20. 8 Muted Viol 61 pipes
21. 8 Viol Celeste 61 pipes
22. 8 Corno d’ Amore 61 pipes
Tremulant
23. 8 Tuba 61 pipes (Unenclosed)
Chimes 25 tubes
Pedal Division
(3 stops, 3 ranks, 120 pipes)
32 Resultant Rocking tablet
24. 16 Bourdon 32 pipes
25. 16 Gedackt (Swell)
26. 8 Major Bass 32 pipes
27. 8 Stopped Bass 12 pipes
28. 16 Trombone 12 pipes
29. 16 Echo Bourdon 32 pipes
